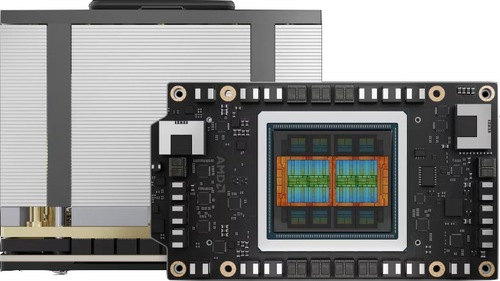

AMD Instinct MI350X Specs
AMD Instinct MI350X
|
16384 Shaders
288GB HBM3e
2200MHz
|
|
Peak AI Performance
18.45 PFLOPS
FP4 Tensor Sparse
|
|
FP32
144.18 TFLOPS
|
|
FP16
144.18 TFLOPS
|
|
Form Factor
OAM Module
-
|
|
TDP
1000W
|
|
-
-
-
-
-
|
|
GB6 OpenCL N/A
0%
|
|
GB6 Metal N/A
0%
|
|
GB6 Vulkan N/A
0%
|
|
GB5 OpenCL N/A
0%
|
|
GB5 CUDA N/A
0%
|
|
GB5 Metal N/A
0%
|
|
GB5 Vulkan N/A
0%
|
|
OCT 2020.1 N/A
0%
|
|
OCT Metal N/A
0%
|
|
Foundry
TSMC
TSMC IO Die
|
|
Fabrication Node
N3P
N6 IO Die
|
|
Die Size
8x 181 mm²
-
|
|
Transistor Count
8x 17.4 Billion
2x 23 Billion IO Die
|
|
Transistor Density
96.13M/mm²
-
|
|
Form
OAM Module
|
|
Shading Units
16384 Shaders
-
|
|
Texture Mapping Units
-
|
|
Render Output Units
-
|
|
Tensor Cores
1024 T-Cores
|
|
-
-
|
|
-
-
|
|
Compute Units
256 CUs
|
|
-
-
|
|
-
-
|
|
-
-
-
2200MHz
|
|
Peak AI Performance
18.45 PFLOPS
FP4 Tensor Sparse
|
|
FP4
9.23 PFLOPS Tensor
18.45 PFLOPS Tensor Sparse
|
|
FP8
-
4.61 PFLOPS Tensor (FP16 Accumulate)
9.23 PFLOPS Tensor (FP16 Accumulate) Sparse
4.61 PFLOPS Tensor (FP32 Accumulate)
9.23 PFLOPS Tensor (FP32 Accumulate) Sparse
|
|
FP16
144.18 TFLOPS
2.31 PFLOPS Tensor (FP16 Accumulate)
4.61 PFLOPS Tensor (FP16 Accumulate) Sparse
2.31 PFLOPS Tensor (FP32 Accumulate)
4.61 PFLOPS Tensor (FP32 Accumulate) Sparse
|
|
FP32
144.18 TFLOPS
144.18 TFLOPS Tensor
288.36 TFLOPS Tensor Sparse
|
|
FP64
72.09 TFLOPS
72.09 TFLOPS Tensor
|
|
BF16
-
2.31 PFLOPS Tensor
4.61 PFLOPS Tensor Sparse
|
|
-
-
-
|
|
INT4
4.61 POPS Tensor
9.23 POPS Tensor Sparse
|
|
INT8
-
4.61 POPS Tensor
9.23 POPS Tensor Sparse
|
|
-
-
|
|
-
-
|
|
Pixel Fillrate
-
|
|
-
-
|
|
Texture Fillrate
-
|
|
-
-
|
|
L1
-
-
16KB/CU
-
|
|
L2
16MB Shared
|
|
L3
256MB Shared
-
|
|
288GB
HBM3e
ECC
|
|
Bus Width
8192Bit
|
|
Clock
3906MHz
Transfer Rate
7.8GT/s
Bandwidth
8000GB/s
|
|
-
-
-
-
-
-
-
-
-
|
|
TDP
1000W
|
|
-
-
|
|
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
No Ports
|
|
Max Resolution
Unknown
|
|
Max Resolution Refresh Rate
-
|
|
Variable Refresh Rate
-
-
-
|
|
Display Stream Compression (DSC)
Not Supported
|
|
Multi Monitor Support
Unknown
|
|
-
-
|
|
Model
4x VCN 4.0
|
|
Codec
-
-
-
-
-
-
VP9
-
AVC (H.264)
HEVC (H.265)
-
AV1
-
-
|
|
Model
4x VCN 4.0
|
|
Codec
MPEG-1
MPEG-2
MPEG-4
JPEG
VC-1
-
VP9
-
AVC (H.264)
HEVC (H.265)
-
AV1
-
-
|
|
-
-
-
-
|
|
-
-
OpenCL
3.0
-
-
|
|
-
-
-
-
GFX
9.4
-
-
-
-
|
|
-
-
-
-
|
|
-
-
-
-
-
-
-
-
|
|
-
-
PCIe Version
5.0
PCIe Lanes
16
|
|
Multi GPU Support
Supported
Type
Infinity Fabric
|
|
-
-
-
-
-
-
|
