AMD Radeon RX 9060 XT 16GB Specs

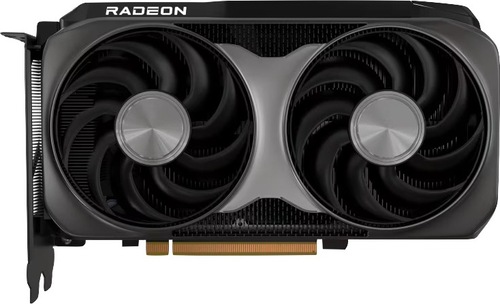

AMD Radeon RX 9060 XT 16GB
$349
|
2048 Shaders
16GB GDDR6
3130MHz
|
|
Peak AI Performance
820.51 TOPS
INT4 Tensor Sparse
|
|
FP32
25.64 TFLOPS
|
|
FP16
51.28 TFLOPS
|
|
Form Factor
PCIe Card
2.0-Slots
|
|
TDP
160W
|
|
Power Connectors
-
1x 8-Pin
-
-
|
|
GB6 OpenCL N/A
0%
|
|
GB6 Metal N/A
0%
|
|
GB6 Vulkan N/A
0%
|
|
GB5 OpenCL N/A
0%
|
|
GB5 CUDA N/A
0%
|
|
GB5 Metal N/A
0%
|
|
GB5 Vulkan N/A
0%
|
|
OCT 2020.1 N/A
0%
|
|
OCT Metal N/A
0%
|
|
Manufacturer
AMD
|
|
Chip Designer
AMD
|
|
Architecture
RDNA 4
|
|
Family
Radeon RX 9000
|
|
Codename
-
Navi 44
Variant
Navi 44 XT
|
|
Market Segment
Desktop
|
|
Release Date
5/20/2025
|
|
Foundry
TSMC
-
|
|
Fabrication Node
N4P
-
|
|
Die Size
153 mm²
-
|
|
Transistor Count
29.7 Billion
-
|
|
Transistor Density
194.12M/mm²
-
|
|
Form
PCIe Card
|
|
Shading Units
2048 Shaders
-
|
|
Texture Mapping Units
128 TMUs
|
|
Render Output Units
64 ROPs
|
|
Tensor Cores
64 T-Cores
|
|
Ray-Tracing Cores
32 RT-Cores
|
|
-
-
|
|
Compute Units
32 CUs
|
|
-
-
|
|
-
-
|
|
-
-
2530MHz Base
3130MHz
|
|
Peak AI Performance
820.51 TOPS
INT4 Tensor Sparse
|
|
-
-
-
|
|
FP8
102.56 TFLOPS
102.56 TFLOPS Tensor (FP16 Accumulate)
205.13 TFLOPS Tensor (FP16 Accumulate) Sparse
102.56 TFLOPS Tensor (FP32 Accumulate)
205.13 TFLOPS Tensor (FP32 Accumulate) Sparse
|
|
FP16
51.28 TFLOPS
51.28 TFLOPS Tensor (FP16 Accumulate)
102.56 TFLOPS Tensor (FP16 Accumulate) Sparse
51.28 TFLOPS Tensor (FP32 Accumulate)
102.56 TFLOPS Tensor (FP32 Accumulate) Sparse
|
|
FP32
25.64 TFLOPS
-
-
|
|
FP64
800 GFLOPS
-
|
|
BF16
51.28 TFLOPS
51.28 TFLOPS Tensor
102.56 TFLOPS Tensor Sparse
|
|
-
-
-
|
|
INT4
410.26 TOPS Tensor
820.51 TOPS Tensor Sparse
|
|
INT8
-
205.13 TOPS Tensor
410.26 TOPS Tensor Sparse
|
|
INT32
12.82 TOPS
|
|
-
-
|
|
Pixel Fillrate
200.32 GPixel/s
|
|
-
-
|
|
Texture Fillrate
400.64 GTexel/s
|
|
L0
64KB/WGP
|
|
L1
-
-
-
256KB/Array
|
|
L2
4MB Shared
|
|
L3
32MB Shared
1.13TB/s
|
|
16GB
GDDR6
-
|
|
Bus Width
128Bit
|
|
Clock
2500MHz
Transfer Rate
20GT/s
Bandwidth
320GB/s
|
|
-
-
-
-
-
-
-
-
-
|
|
TDP
160W
|
|
-
-
|
|
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
2x DisplayPort 2.1
-
-
-
-
-
-
-
-
-
1x HDMI 2.1
-
-
|
|
Max Resolution
15360x8640
|
|
Max Resolution Refresh Rate
165Hz
|
|
Variable Refresh Rate
-
FreeSync
-
|
|
Display Stream Compression (DSC)
Supported
|
|
Multi Monitor Support
3
|
|
Content Protection
HDCP 2.3
|
|
Model
VCN 4.0
|
|
Codec
-
-
-
-
-
-
VP9
-
AVC (H.264)
HEVC (H.265)
-
AV1
-
-
|
|
Model
VCN 4.0
|
|
Codec
MPEG-1
MPEG-2
MPEG-4
JPEG
VC-1
-
VP9
-
AVC (H.264)
HEVC (H.265)
-
AV1
-
-
|
|
Direct X
12
Direct 3D
12_2
|
|
OpenGL
4.6
OpenCL
2.2
Vulkan
1.3
|
|
Shader Model
6.8
-
-
GFX
12
-
-
-
-
|
|
-
-
-
3x Fans
|
|
Power Connectors
-
-
-
1x 8-Pin
-
-
-
|
|
Slots Required
2.0
PCIe Version
5.0
PCIe Lanes
8
|
|
Multi GPU Support
Supported
Type
CrossFire XDMA
|
|
Height
111 mm (4.37 in)
Width
204 mm (8.03 in)
Depth
40 mm (1.57 in)
|
