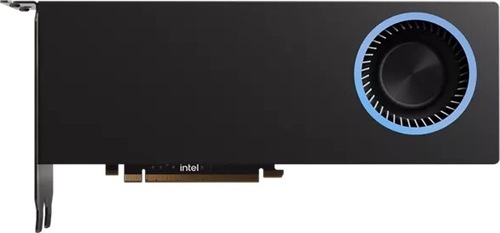

Intel Arc Pro B60 Specs
Intel Arc Pro B60
|
2560 Shaders
24GB GDDR6
2400MHz
|
|
Peak AI Performance
393.22 TOPS
INT4 Tensor
|
|
FP32
12.29 TFLOPS
|
|
FP16
24.58 TFLOPS
|
|
Form Factor
PCIe Card
2.0-Slots
|
|
TDP
200W
|
|
Power Connectors
-
1x 8-Pin
-
-
|
|
GB6 OpenCL N/A
0%
|
|
GB6 Metal N/A
0%
|
|
GB6 Vulkan N/A
0%
|
|
GB5 OpenCL N/A
0%
|
|
GB5 CUDA N/A
0%
|
|
GB5 Metal N/A
0%
|
|
GB5 Vulkan N/A
0%
|
|
OCT 2020.1 N/A
0%
|
|
OCT Metal N/A
0%
|
|
Manufacturer
Intel
|
|
Chip Designer
Intel
|
|
Architecture
Battlemage
|
|
Family
Arc Pro B
|
|
Codename
Xe2 HPG
BMG-G21
-
-
|
|
Market Segment
Workstation
|
|
Release Date
5/19/2025
|
|
Foundry
TSMC
-
|
|
Fabrication Node
N5
-
|
|
Die Size
272 mm²
-
|
|
Transistor Count
19.6 Billion
-
|
|
Transistor Density
72.06M/mm²
-
|
|
Form
PCIe Card
|
|
Shading Units
2560 Shaders
-
|
|
Texture Mapping Units
160 TMUs
|
|
Render Output Units
80 ROPs
|
|
Tensor Cores
160 T-Cores
|
|
Ray-Tracing Cores
20 RT-Cores
|
|
-
-
|
|
-
-
|
|
Execution Units
160 EUs
|
|
Graphics Processing Clusters
20 GPCs
|
|
-
-
2000MHz Base
2400MHz
|
|
Peak AI Performance
393.22 TOPS
INT4 Tensor
|
|
-
-
-
|
|
-
-
-
-
-
-
|
|
FP16
24.58 TFLOPS
-
-
98.3 TFLOPS Tensor (FP32 Accumulate)
-
|
|
FP32
12.29 TFLOPS
-
-
|
|
FP64
3.07 TFLOPS
-
|
|
BF16
-
98.3 TFLOPS Tensor
-
|
|
-
-
-
|
|
INT4
393.22 TOPS Tensor
-
|
|
INT8
-
196.61 TOPS Tensor
-
|
|
-
-
|
|
-
-
|
|
Pixel Fillrate
192 GPixel/s
|
|
-
-
|
|
Texture Fillrate
384 GTexel/s
|
|
-
-
|
|
L1
-
-
-
Unknown
|
|
L2
18MB Shared
|
|
-
-
-
|
|
24GB
GDDR6
-
|
|
Bus Width
192Bit
|
|
Clock
2375MHz
Transfer Rate
19GT/s
Bandwidth
456GB/s
|
|
-
-
-
-
-
-
-
-
-
|
|
TDP
200W
|
|
-
-
|
|
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
4x mini-DisplayPort 2.1
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
|
|
Max Resolution
7680x4320
|
|
Max Resolution Refresh Rate
60Hz
|
|
Variable Refresh Rate
-
FreeSync
-
|
|
Display Stream Compression (DSC)
Not Supported
|
|
Multi Monitor Support
4
|
|
-
-
|
|
Model
Arc
|
|
Codec
-
-
-
-
-
-
-
-
AVC (H.264)
HEVC (H.265)
-
AV1
-
-
|
|
Model
Arc
|
|
Codec
-
MPEG-2
-
JPEG
-
-
VP9
-
AVC (H.264)
HEVC (H.265)
-
AV1
-
-
|
|
Direct X
12
Direct 3D
12_2
|
|
OpenGL
4.6
OpenCL
3.0
Vulkan
1.3
|
|
Shader Model
6.6
-
-
-
-
-
-
-
-
|
|
-
-
-
1x Fan
|
|
Power Connectors
-
-
-
1x 8-Pin
-
-
-
|
|
Slots Required
2.0
PCIe Version
4.0
PCIe Lanes
8
|
|
-
-
-
-
|
|
Height
111 mm (4.37 in)
Width
222 mm (8.74 in)
Depth
40 mm (1.57 in)
|
